North Sonar Foil System - Build Your Own

North Sonar Foil System - Build Your Own

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Build Your New Foil quiver from North, or purchase individual items to add to your current setup.

SHIPPING DISCOUNT:  Any combination of items on this page ships for 25$ flat fee so load up your arsenal of North Foil Gear from this page for cheap shipping on complete systems and multiple foil combinations.

How to Use this Page:  Choose a System and add a Front Foil or Foils or choose foils and stabs to add to your current North Sonar Foil setup.

Foil Systems Include:  Mast, Fuselage, Stabilizer (S270cm), Hardware and Covers and Travel Case,

Individual Front Foils and Stabs include Covers and Hardware

1: Choose Carbon or Aluminum System in the mast length you like

2: Add Front Foil or Foils

3: Add additional Stabilizers (Systems include S270 stabilizer, addditional stabs are optional)

------------------------------------------------

Descriptions:

SYSTEMS

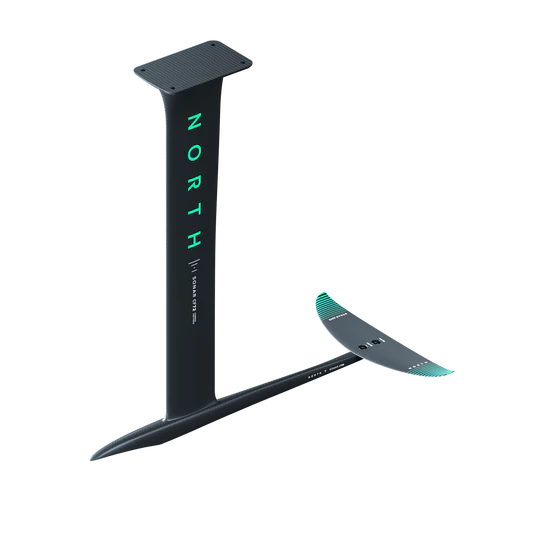

Sonar System Carbon CF85  Insane response. Incredible performance. Our highest quality pre-preg carbon modular foil edition provides a stiffer, more direct feel and more immediate feedback. Engineered with exceptional stiffness for all disciplines, the CF Edition is made from lightweight and durable carbon pre-preg components and has a reduced swing weight for an agile, dynamic and direct feel, and great pumpability. The refined one-piece mast design is tapered for optimal load transfer and lower surface friction, and features our unique GeoLock system. The longer CF85 mast increases overall ride performance in choppy conditions. The CF72 mast is ideal for shallower waters, prone surf foiling and towing.

Includes

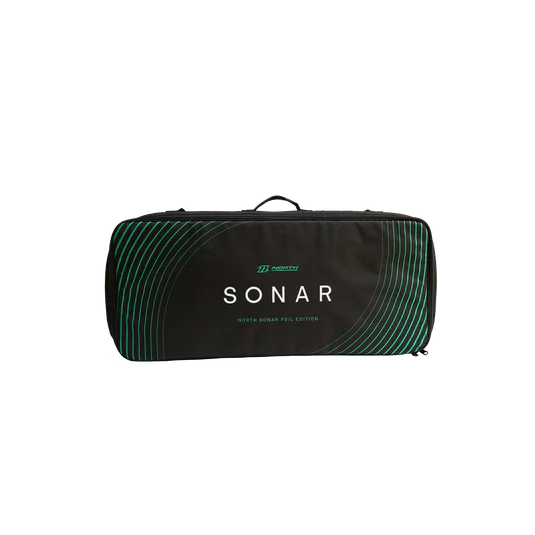

Carbon CF85 Mast with cover, C700 Fuselage, S270 Stabilizer with cover, Tool Kit, Sonar Fuselage Screw Pack B (M8x35 Screws, M8 Flat Washers), Sonar Stabilizer Screw Pack C (M8x16mm)*, Sonar Travel Bag

Sonar System Aluminum AF85 and AF72  The new refined aluminium mast profile section delivers an optimal balance between light weight and exceptional strength, so you can kite, wing, surf and tow foil with confidence, making use of the fully interchangeable Sonar Foil System to extend your playtime on the water. Engineered to last, with exceptional strength to weight ratio, and our unique GeoLock system for a clean, direct feel with minimum resistance on the water. The AF85 mast increases overall ride performance in choppy conditions. The AF72 mast is ideal for shallower waters, and prone surf foiling. Now with A700 Fuselage for added stability, and new S270 Carbon Stabilizer for performance and efficiency.

Includes

AF85 or AF72 Mast, AF Board Adaptor, A700 Fuselage, S270 Stabilizer with cover, Tool Kit, Sonar Board Adaptor Screw Pack A (M8x40), Sonar Fuselage Screw Pack B (M8x35 Screws, M8 Flat Washers), Sonar Stabilizer Screw Pack C (M8x16mm)*, Sonar Travel Bag

------------------------------------------------

FRONT FOILS

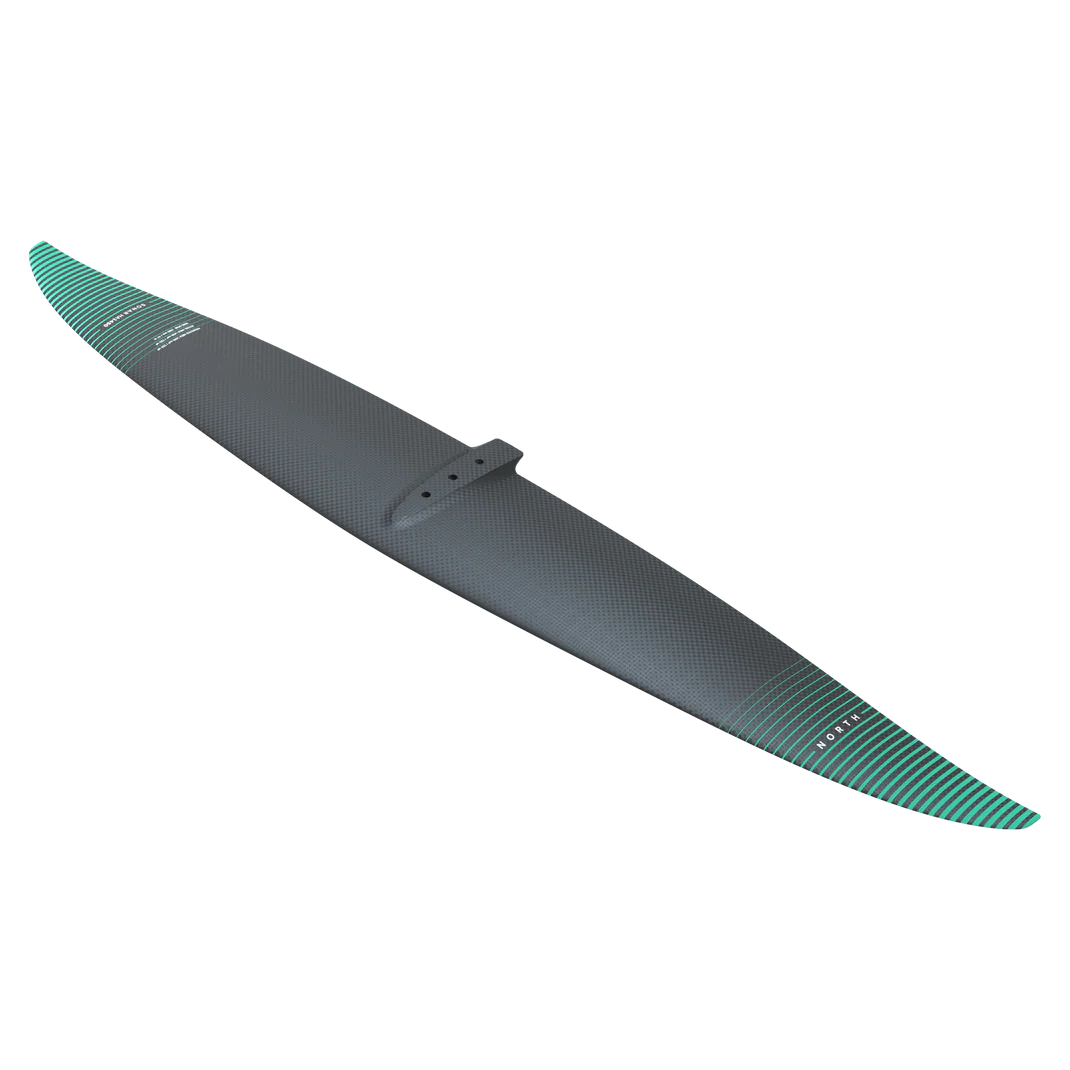

HA1450 is ideal for dock starts, pumping to connect wave after wave, coastal runners or stealing wakes. Downwinding: Ocean swells move faster in the open ocean – slower in shallow water or closer to the coast. The faster you move through the water, the more choice you have to choose a more efficient line. The smaller the wing, the less planing surface = less lift and higher stall speed.  The HA Series Wings are designed for lighter / more experienced riders to foil in faster-moving ocean swells.

HA1250 to HA850  With excellent lift at high speed, the HA850 to HA1250 are your core wing-foiling and prone surf sizes. The larger HA1250-HA1450 is ideal for dock starts, pumping to connect wave after wave, coastal runners or stealing wakes. Downwinding: Ocean swells move faster in the open ocean – slower in shallow water or closer to the coast.

HA750 HA650 HA550  have less planing surface and higher stall speed. They are designed to generate maximum efficiency and lift for high-speed wing foiling, racing, and kite foiling.

------------------------------------------------

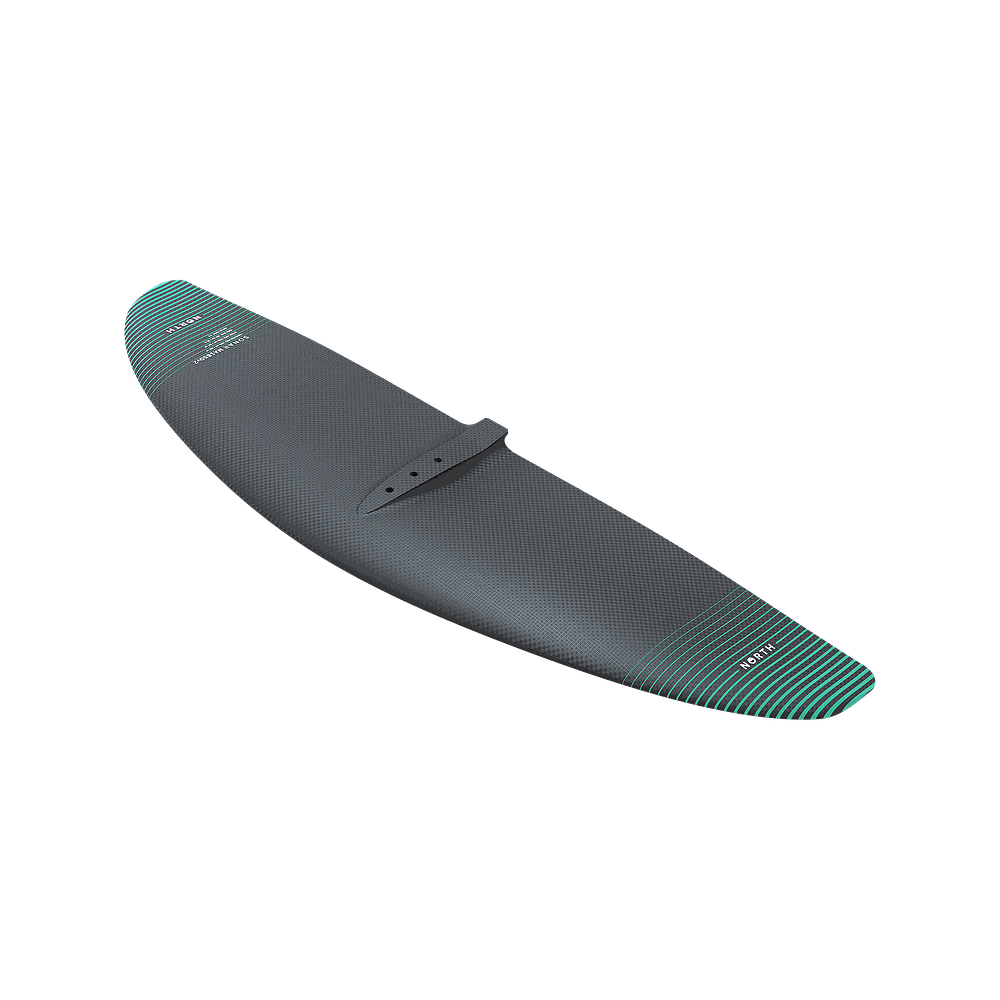

MA1850v2 PRIME and MA2100v2 Prime  Our larger MAv2 Series wings deliver a stable learn-to-foil set-up designed for winging and boat foiling. Easy to use with pitch stability across the entire speed range, controllable early lift and a lower stall speed. Engineered in an affordable pre-preg e-glass construction, offering the same high performance, durability, and impact resistance as the carbon pre-preg.

MA1500v2 is ideal for intermediate wingfoilers progressing from the larger sizes, and a lighter-weight (<70kg) rider could learn to wingfoil. The MA1500v2 has the same airfoil section as the larger wings for low stall-speed and pitch stability, but a smaller area and higher aspect ratio to provide higher speed, better turning and more glide.

MA1200v2 is ideal for intermediate wingfoilers progressing from the larger sizes or more advanced riders winging in lighter winds. The MA1200v2 will feel faster and more manoeuvrable than the larger sizes. It has a different airfoil section to the larger wings, with more emphasis on efficiency and speed, and less emphasis on stability. The MA1200v2 is a wing you will never grow out of – keep it in your quiver for light wind days.

MA1050v2 is a versatile all-rounder, ideal for wingfoiling at speed, freestyle or in surf, for kite foiling and wake/boat foiling. Ideal for average-weight intermediate riders or heavier advanced riders, we’ve designed the MA1050v2 to deliver a wide speed range, with more emphasis on efficiency and top-speed, while retaining a low stall speed. Highly agile and fast-turning, the MA1050v2 maintains a locked-in feel for upwind/powered riding and ventilation-free tip-breaching so you can crank your turns

MA850v2 Front Wing is a mid-aspect ratio wing ideal for lighter to average weight advanced wingfoilers or prone surfers, and kitefoilers. Very fast and extremely manoeuvrable, the airfoil section has been designed with more emphasis on top-speed over stall speed. The area and aspect ratio combination gives the MA850v2 excellent agility and efficient glide, provided speed is maintained. It retains a locked-in feel for upwind/powered riding.The MA850v2 is a fantastically versatile wing for an advanced rider looking for a wide speed range across multiple disciplines. Guaranteed ventilation-free tip-breaching, so you can really crank your turns.

MA700v2 Front Wing is our quickest, most responsive mid-aspect all-rounder. Ideal for wingfoiling at speed, freestyle or in surf, and for kite foiling, Highly agile and fast-turning, the MA700v2 retains a locked-in feel for upwind/powered riding and ventilation-free tip-breaching. The MA700v2 is pitch-stable across the entire speed range, with excellent top end and efficient glide, provided speed is maintained.

MA600v2 and MA500v2 Our new small MA wings are designed for going fast on a wing, especially on big waves. With all the performance characteristics of the MA series, they continue to be easy to use, with a wide range of speeds.

------------------------------------------------

SURF SF1230 to SF830 We’ve engineered our Sonar Surf Series for super low stall speeds, effortless pumping and surf-style carving. Ideal for riders wanting more from surf and downwind swells (with or without a wing).

SURF SF680 and SF530  Responsive and agile, our new small SF wing is designed for the most advanced riders in prone surf and for smaller wing surf riders. The SF530 shares all the traits of the SF Front Wing Series – for powerful rail-to-rail carves and fast tight pivoting turns. Push it harder, lip stall and lay it over.

------------------------------------------------

STABILIZERS

Freeride  S270  Included in system purchases.  Exceptional glide. Our new thinner profile and higher aspect ratio carbon stabilizers offer reduced resistance and a more efficient outline. The S270 is your go-to for all round kite, wing and surf performance, offering optimal balance, speed, efficiency and control. Pair the S210 with a smaller front wing for high-speed performance and a more agile feel.

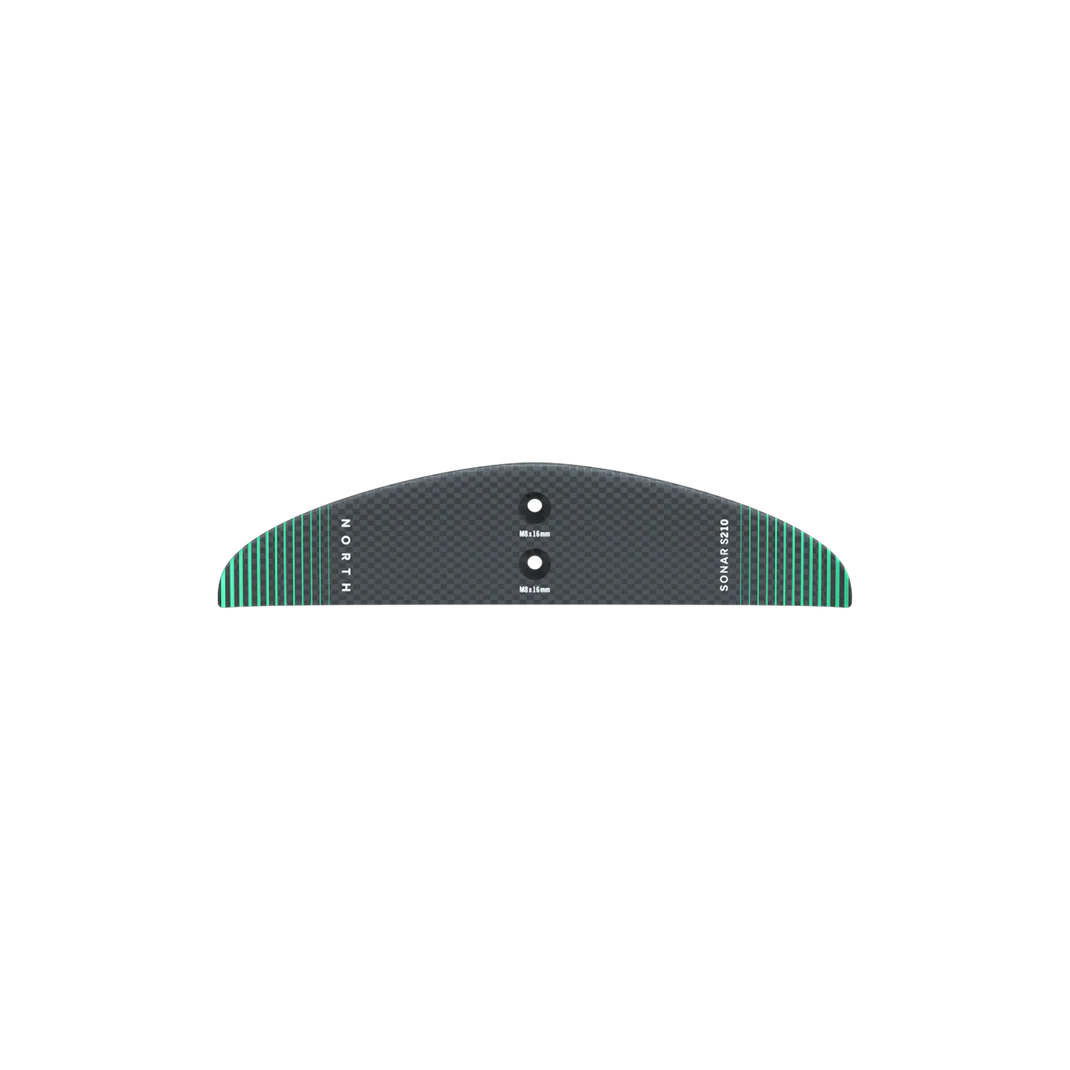

Freeride  S210 Your go-to for all round kite, wing and surf performance, offering optimal balance, speed, efficiency and control. Pair the S210 with a smaller front wing for high-speed performance and a more agile feel.

SURF  S215 stabilizer has a lower stall to complement the SF Front Wings. Its moderate span creates an aspect ratio high enough for efficient pumping, while remaining compact for responsiveness in turns. The minimal sweep outline improves low-speed performance and effectively reduces fuselage length compared to swept stabilizers. Tips curve upwards to provide directional stability, inspiring confidence during takeoffs and grip in turns. Advanced riders seeking a looser feel may choose to remove the wingtips, using the dashed guideline graphic, to create a completely flat stabilizer with a 205cm2 area

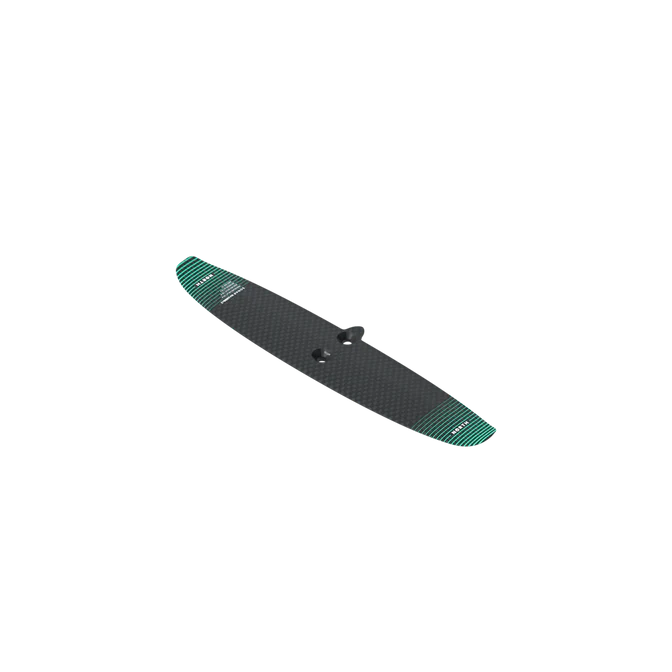

Surf  S185 is designed to pair with the smaller SF Series Surf Front Wings. Its moderate span creates an aspect ratio high enough for efficient pumping, while remaining compact for responsiveness in turns. The minimal sweep outline improves low-speed performance and effectively reduces fuselage length compared to swept stabilizers. Tips curve upwards to provide directional stability, inspiring confidence during takeoffs and grip in turns.

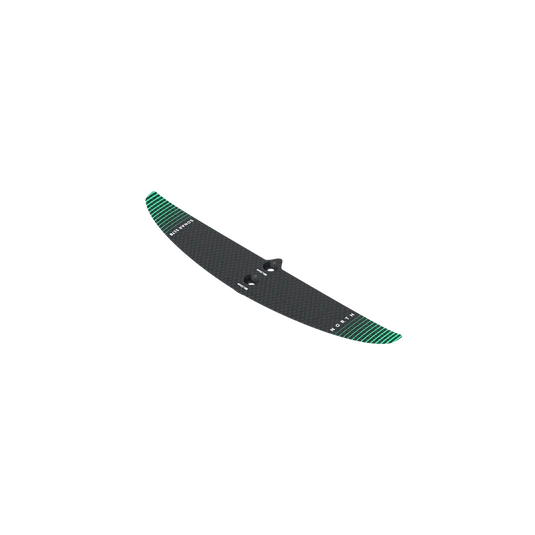

Speed S178  Flat, loose and even faster, the new S178 Stabilizer is a high speed upgrade to the Sonar Foil System for experienced riders. We recommend pairing the S178 with Front Wing size HA950, or smaller. The S178 has a higher aspect ratio than the S208, which means less drag, and the flatter rondure (front view) enables more manoeuvrability.
